Massoth 8211100 eMOTION LS Small Narrow Gauge Steam Loco Sound Decoder NIB
Easily change the type of Loco Sounds with LGB Factory Sound Files
Free downloads for LGB Factory sound files for steam, electric and diesel locos
New and Unused In original package
Shourt Line Discount Price: $208.99 New
Decoder includes instructions, pre wired decoder board with track and motor leads, front, rear and interior light cable (four wire)and smoke and accessory (F1 & F2) cable (three wire).
Features
- Miniature Decoder with synchronized sound, motor and function control
- Mini-size that is identical to the LGB 55021 (small non-sound decoder)
- Dimensions: 53,5 x 25 x 15 mm
- 1.5 Amp motor output
- 100% compatible with LGB type II, III and supports the NMRA DCC Protocol in its entirety
- Features the same optimum driving characteristics in digital and analog mode as the eMOTION XLS
- 6 function outputs
- 6 audio channels for user downloaded sounds
- Sound functions are available starting at a very low voltage
- Optional Break-On-DC (brake function with DC)
- Integrated Susi Interface
Sound System
- Reproduces the original sound of a locomotive in digital HiFi quality
- A memory capacity of up to 145 sec
- The humongous memory capacity facilitates various extra sounds.
- The volume of the 4 basic sounds may be adjusted separately:
- Rev-up phase
- Standing sounds
- Shut-down sequence
- Driving sounds
Available Free LGB Factory Sound File downloads for the LS Decoder -
Easily change the LS decoder for any of the following LGB locos:
| 8221066 | VT133 Anteater / Railbus | 31.10.2008 | Download |
| 0.96 MB | |||
| Dimax Update Software | 09.08.2008 | Download | |
| Also for updates of eMOTION products | 0.1 MB | ||
| Firmware LS 2.1 | 24.07.2008 | Download | |
| NOTE: After installing this firmware, the sound needs to be installed again! | 0.07 MB | ||
| req. Version: 2.0 || est. updatetime: 2 min. | |||
| 8211025 | US Steam Loco Forney/Columbus | 31.10.2008 | Download |
| 2.02 MB | |||
| req. Version: 2.1 || est. updatetime: 44 min. | |||
| 8211071 | Model range U | 31.10.2008 | Download |
| 1.69 MB | |||
| req. Version: 2.1 || est. updatetime: 37 min. | |||
| 8211074 | 1C 99-5633 Spreewald | 31.10.2008 | Download |
| 1.73 MB | |||
| req. Version: 2.1 || est. updatetime: 38 min. | |||
| 8211100 | Steam Loco Universal (Type: Stainz) | 15.07.2008 | Download |
| 1.98 MB | |||
| req. Version: 2.1 || est. updatetime: 43 min. | |||
| 8221090 | Köf Switching Diesel | 31.10.2008 | Download |
| 0.75 MB | |||
| req. Version: 2.1 || est. updatetime: 17 min. | |||
| 8221091 | Light railway Diesel Loco | 01.10.2008 | Download |
| 0.95 MB | |||
| req. Version: 2.1 || est. updatetime: 21 min. | |||
| 8221100 | Small Diesel Loco (Köf) | 27.08.2008 | Download |
| 0.75 MB | |||
| req. Version: 2.1 || est. updatetime: 17 min. | |||
| 8231035 | Streetcar (historical standard Darmstadt) | 31.10.2008 | Download |
| 0.81 MB | |||
| req. Version: 2.1 || est. updatetime: 18 min. | |||
| 8231100 | Small Electric Loco (Streetcar) | 27.08.2008 | Download |
| 0.81 MB | |||
| req. Version: 2.1 || est. updatetime: 18 min. | |||
User Manual
Photos
Decoder comes with all required cables for motor, front, rear & interior lights, smoke and one other function
Decoder board provides sockets for easy wiring
Motor and track wires are terminated in crimp on connectors for easy connection
These decoders are prefect for small 4 wheel locos!

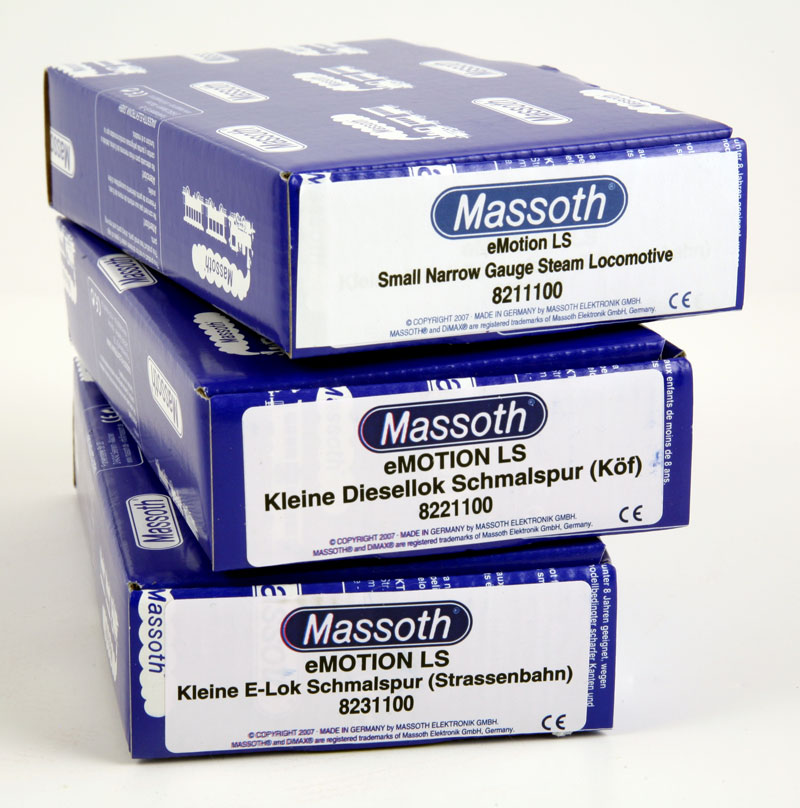

LS decoders come in Small Steam loco narrow gauge, Small Diesel Loco (Köf) and Small Electric Loco (Streetcar) versions.
Made in Germany by Massoth - 100% satisfaction guaranteed.
